Quick details:

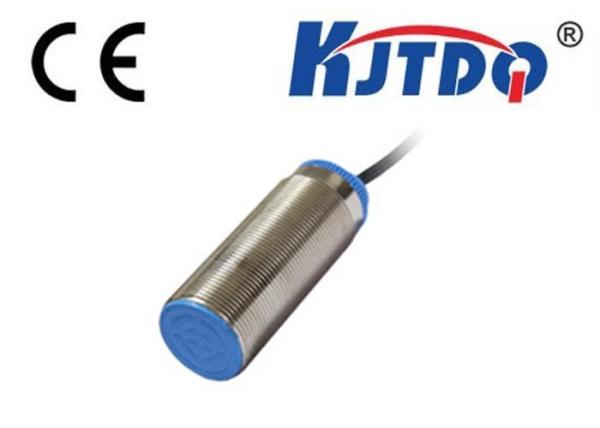

M30 Rotation Monitoring

DIA

M30 x 1.5

Cable

Sensing range 10 mm

flush mountable

Telemecanique sensors cylindrical inductive proximity sensors are designed for non-contact sensing of metal objects up to 60mm.

Features and Benefits:

Adjustment of speed threshold by potentiometer
120 to 3000 impulses/minute (High speed types)
6 to 150 impulses/minute (Low speed types)
LED status display
Flush mountable brass body
Pre-wired with 2m cable
Reverse polarity protection
Short circuit protection (dc versions only)
IP67 environmental rating

Specification:

Working Principle:

Before using make sure the gear is mounted on the shaft for speed measurement traight, Helical or Grooved disk gear all can be used ount the sensor on the bracket, Adjust the Clarence between the sensor and the gear tooth to be approx. 1mm. When the gear starts rotating with the shaft, According to the principle of electromagnetic induction, a voltage pulse signal is generated at both ends of the internal coil of the sensor, The Z-voltage pulse signal is generated when the axis is rotated, According to the type. flush
Given that NPN= Measured shaft speed in Rotation/Minute, Z= Number of gear teeth.
When the gear tooth number is 60, the rotation of the axis is converted to a voltage pulse signal with frequency of f, and the signal is sent to the corresponding digital speed.

Typical Applications:

The OsiSence XS range of inductive proximity sensors are ideal for using in the food and beverage industry.

Nanjing KJT Electric Co.,ltd

Founded in 2009, Nanjing KJT Electric Co,.LTD is a professional manufacturer in the field of sensors and industrial switches.
Our main products are proximity sensor, photoelectric sensor,speed sensor,and wireless sensor so on.

As a professional manufacturer, with over 10 years experience in this field,
KJT owns an outstanding R&D team who dedicate themselves to the development and innovation of sensors’ technology.
Our team is a mixed team,experienced and innovative.
The standard sensors are designed by our experienced engineers,and the innovative solutions are thought by our new blood.

So we could satisfy your requirements for high quality and innovative design.

Therefore,we are sure that our products can meet the exact demands of different industries and sectors efficiently. Our high-tech products are widely used in a variety of industrial mechanical equipment and automatic assembly lines,for example,the industry of transportation, plastic, metallurgy, chemistry, textile, tobacco, food processing, printing etc. for properties of location check, signal transmission, automatic counting and velocimetry.

Also the service of OEM and free sample could be provided according to your requirements.
