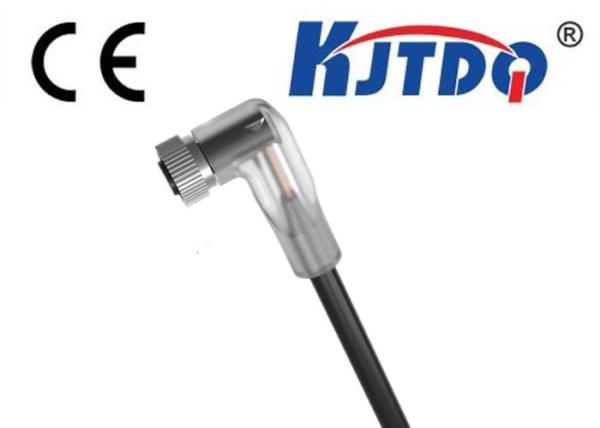

M8 Connector cable for sensors
Electrical Data:
Rated current: 2A
Rated voltag: 60V
Contact resistance: ≤ 5mΩ
Insulation resistance: ≥ 100MΩ
Specification:
Connector locking system: Screw-locking
Waterproof O-ring: FKM
Insert: PA66+GF
Female contacts: Phosphorus copper with gold plated
Male contacts: Brass with gold plated
Screw: Brass with nickel plated
Termination: Riveting
Over-mold: PVC/PU/TPU
Wire gauge (AWG): 22AWG or 24AWG
Wire gauge (mm² ): 0.34mm² Or 0.25mm²
Wire insulation: PVC
Cable jacket: PVC/PUR
Operation temperature: -25° C ~ +80° C or -40° C ~ +105° C
M8 series connectors provides a wide range of metric for small
sensors and actuators.The ingress protection is available and rated
to IP 67, these connectors are ideally suited for industrial
control networks where small sensors are required. Connectors are
either factory TPU over-molded or panel receptacles supplied with
sold-cup for wire connecting or with PCB panel solder contacts.
Field attachable / mountable connector is also available for your
choice.
Our Service:
To Be Your The Best Connection Expert
1. Low cost but good quality in ip67 waterproof in locked condition
with ISO9001 management under efficient service
2. Provide free samples within 2 working days if it is normal
product with existing tooling
3.10 years quality assurance
4. OEM, ODM are availaleb
FAQ:
Q: What's your warranty ? How about the quality of your sensors ?
A: 18 mouths .
We have the certification of ISO,CE,CCC.Our sensors can replace
many famous brand
sensors(BALLUFF,IFM,P+F,TURCK,OMRON,SICK,Contrinex,Schneider,KEYENCE,
BANNER,BAUMER,AUTONICS,etc) You can provide us the date sheet and
we check whether can produce.
Q: Do you have different style ?
A: We produce our own brand sensor(KJT),also provide OEM + ODM
service.
Q: How can we become your sale distributor ?
A: If you can sell our products USD 5,000 to USD 60,000 per year,you could be one of our distributors in your city or area.We have price protection policy in every area.
We still looking for more distributors,do you like to join us?
Q: Can we have our logo or company name to be printed on your products
or the package ?
A: Yes,you can.Logo or imprints can be printed on our products.
The minimum quantity is 500 pcs per logo.You can send us the artwork by email in JPEG or TIFF
format.If you want your logo and company name to be printed on the
package for the products(custom design package).Such as gift box
and paper card,the MOQ is 500 pcs per model.You can send us the artwork by email in
JPG/TIF/AI/EPS/TIFF or coreIDraw formats
Q: How about the delivery time ?
A: We are factory and we have large warehouse for goods,if we have the
sensors you need in stock,we will send in 3 days.If have not in
stock,we will produce asap after received your payment in our
account.the detailed delivery time is according your order qty.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us or send us by email, we will
reply within 12 hrs.
Q: Could KJT provide technology support?
A: We're in this field more than 10 years. If there's any problem, please contact with us,we'll provide
suggestion from our engineer to help you solve problem.
